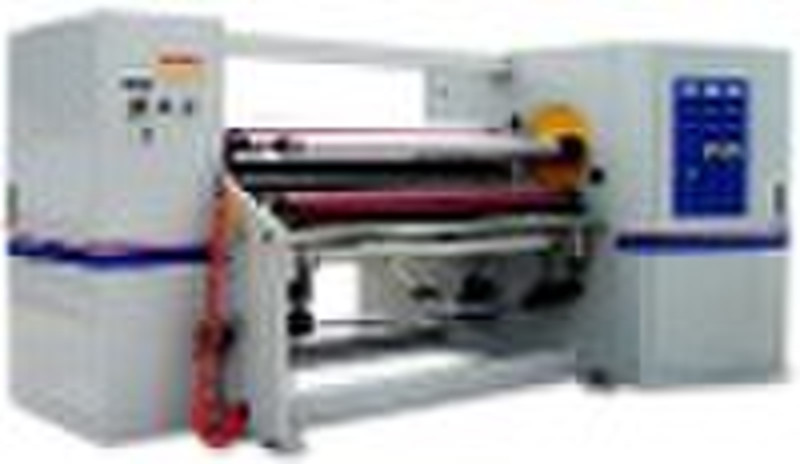

double-spindle switching rewinder

1.application: suitable for the rewinding of gluing and without gluing basis materials such as PE,PET,masking paper,double-side tape,release paper,mylar etc. 2.Feature: 1)two stage length set,accurate rewinding length. 2)automatic switching of the two shafts when the length achieved. 3)high-performance programmable controller is adopted,easy and rapid for integrated rewindingoperation,improve the efficiencygreatly. 4)auto-labeling device pastes the label during the operation toraise the productivity. 5)oil pressure feeding mechanism(belongs of optional equipments),simplified and comfortable feeding operations are provided. 3.technical parameters: modelYET-700YET-1000YET-1300YET-1600raw material width700mm(max.)1000mm(max.)1300mm(max.)1600mm(max.)raw material diameter800mm(max.)800mm(max.)800mm(max.)800mm(max.)finished product width40-700mm40-1000mm40-1300mm40-1600mmfinished product diameterdesign upon the request of the customerinside diameter of paper core3"mechanical speed0-120m/minvoltage220v/380v/440v 3-phase 50/60HZ
